4.5m x 3m Canopro Lite Lightweight Shelter

FRAME SPECIFICATION

• Constructed from hexagonal aluminium with a diameter 40mm x 1.3mm
• Heavy-duty quick release pull pin joints
• 5 position, fully adjustable height settings
• 110mm x 110mm fully welded zinc plated steel footplate
• Quick-release pull pin fixing
• All framework assembled with machine nut and bolt for ease of maintenance
• Available as an accessory, Neoprene Joint Protectors (see optional accessories)

CANOPY SPECIFICATION

• Manufactured from 380g per Sq metre high quality, close mesh polyester, PU coated to ensure fully waterproof
• Double stitched with reinforcing on stress areas
• All seams tape sealed
• Canopy Securing Bolts, these are a vital feature and ensure the canopy is attached correctly to the frame. Over time they also keep the canopy tight, giving a more professional look.
• Canopy Protector Bag (see included accessories)

• Manufactured from the same 380g per Sq metre high quality coated mesh polyester, PU coated to ensure fully waterproof.
  Sides fix to the canopy with a continuous velcro quick fix system, giving the best seal between the canopy and sides.
• Each panel has zipped ends and can be fixed in any position to suit the conditions of the day, when zipped together it also ensures a watertight and windproof seam on all corners as well as a tight and professional look.
• Reinforced zipped areas, our sidewalls have a double material reinforced area around the zip area, this gives maximum strength to this stress area. A major benefit to traders and exhibitors who use the shelters with a sidewall panel remove for more exposure.
• No.8 Zips, all our sides feature No.8 zips for strength and reliability.

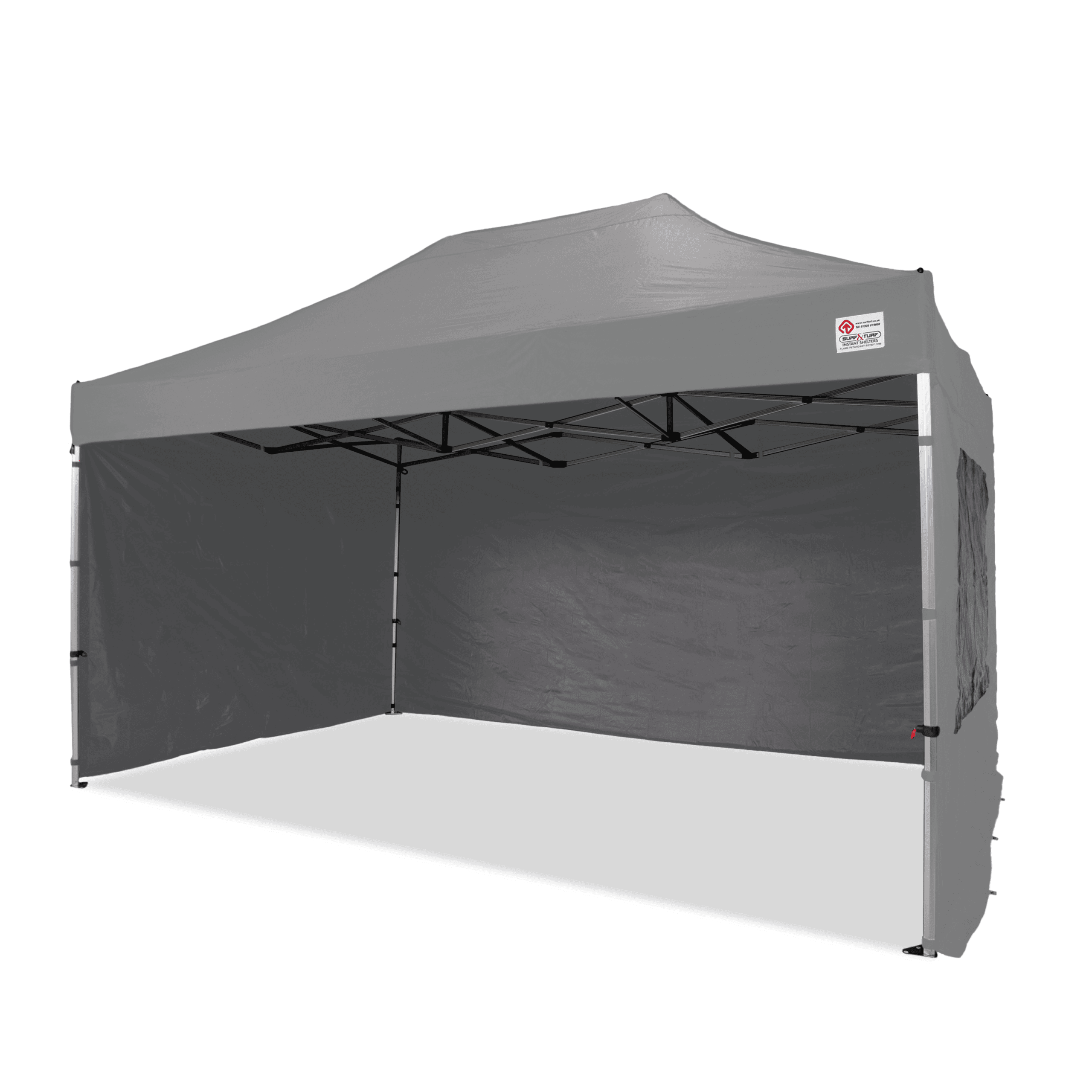

• Shelter sides have one solid panel, two window panels with a blind on the inside which can be rolled up and down as well as one door panel.
• Door Stoppers, all of our door panels are finished with high-quality PVC stoppers
• Cut Out Corners, For ease of use, all of our side walls have cut angled corners, designed to make joining the walls as easy as possible.
• Joining Strip, sidewalls are designed to be a tight fit, this ensures they look neat and professional if you struggle to join the last side, use the additional joining strip we provide with all sides free of charge
• All the sides are interchangeable to suit the conditions of the day.

INCLUDED ACCESSORIES

• Wheeled Cover Bag – The Canopro Lite shelter come complete a wheeled cover bag for storage and transportation.
• Canopy Protector Cover – This drawstring bag goes over the canopy when the frame is packed down, prior to putting the shelter in the bag. It assists in the protection of your canopy and stops it from getting marked by the frame bag.
• Heavy-Duty Anchor Kit – Consisting: 360mm x 12mm steel marquee pegs, specially designed, cam adjusted 30mm straps and zipped carry bag

WEIGHTS AND DIMENSIONS

• Frame packed size – 155cm x 25cm x 25cm
• Sidewalls in bag – 46cm x 46cm x 18cm
• Canopy – 55cm x 37cm x 8cm
• Frame weight – 29kg
• Canopy weight – 9kg
• Sidewall weight – 12kg

WARRANTY

The Canopro Lite Shelter is covered by a 12-month manufacturers warranty as well as a 24-month framework warranty.

A comprehensive list of spare parts are kept in stock ready to ship should you need them.

Terms and conditions apply.

Canopro Lite Warranty Terms
